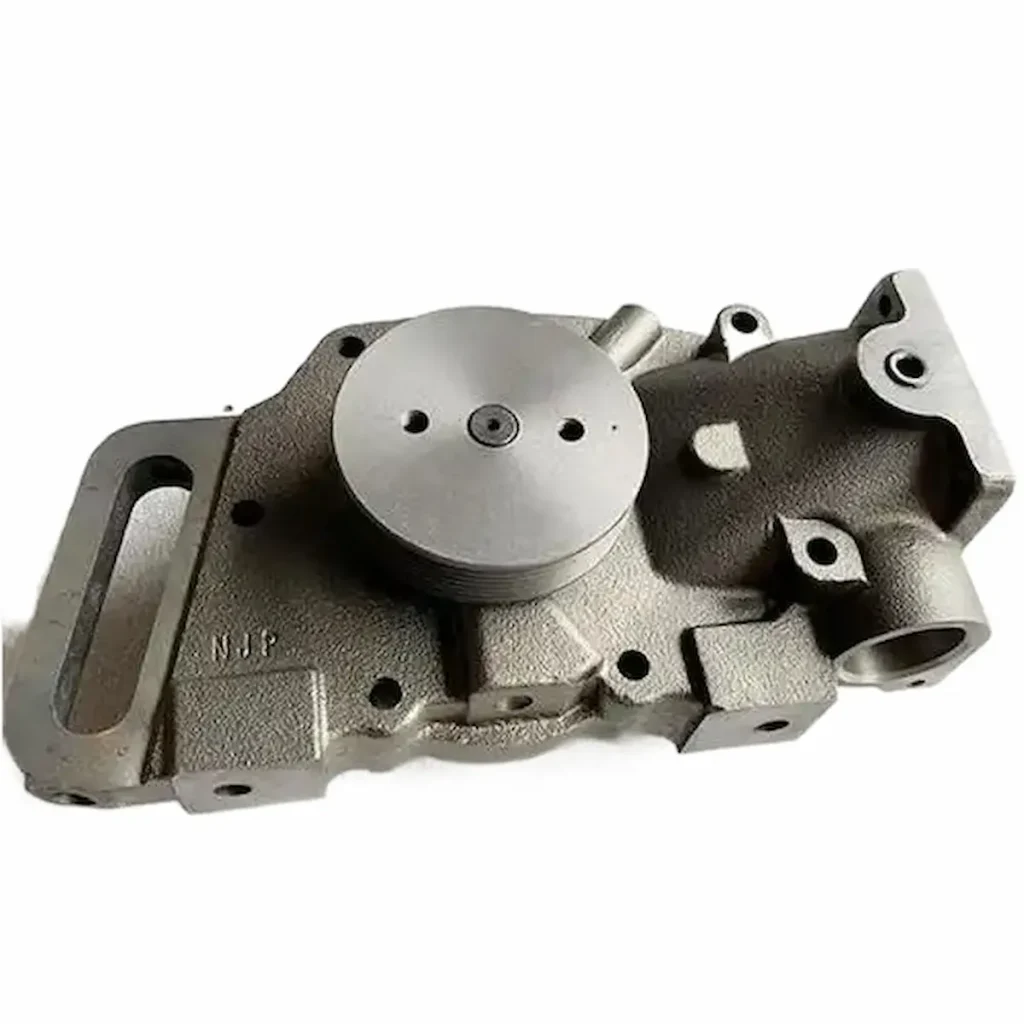

Genuine 3022474 Cummins water pump for NT855 Engine

Water pump assembly for Cummins NT855 and NTA855 Big Cam engines. Ductile iron body, 4.5in impeller, approx. 11.3 kg.

SKU: 3022474

Description Additional information

Water pump assembly 3022474 is the CCEC unit for Cummins NT855 and NTA855 Big Cam II, III and IV engines, covering G1 through G4 genset models from 200 to 400 kW. The ductile iron body carries a 4.5 in ventilated anti-cavitation cast iron impeller on a reinforced steel shaft with sealed bearing. Flow is around 31.5 gpm at 1800 rpm, and the unit weighs about 11.3 kg.

Specifications

Part No.	3022474
Brand	CCEC Cummins (Chongqing)
Engine Fit	NT855 / NTA855 Big Cam II/III/IV
Genset Models	G1, G1A, G1B, G2, G2A, G4 (200–400 kW)
Material	Ductile iron body, cast iron impeller
Impeller	4.5” ventilated, anti-cavitation
Pulley	Multi-groove, integrated
Shaft	Reinforced steel, sealed bearing
Flow @ 1800 rpm	~31.5 gpm / 119 L/min
Weight	~11.3 kg (25 lbs)
Dimensions (approx)	260×180×160 mm
Interchangeable	3051384, AR45184RX, 3801708 (standard duty)
Application	Gensets, industrial, light–medium load machinery
Sealing	High-performance mechanical seal, leak-proof
Warranty	3–6 months
Certification	ISO9000

Key Features

Ductile iron body with cast iron impeller
4.5 in ventilated anti-cavitation impeller
Reinforced steel shaft on sealed bearing
Flow approximately 31.5 gpm (119 L/min) at 1800 rpm
Approximately 11.3 kg, 260 × 180 × 160 mm
Interchanges with 3051384, AR45184RX and 3801708

Typical Applications

200–400 kW generator sets (G1, G1A, G1B, G2, G2A, G4)
Industrial power units
Light to medium load machinery

Ordering from Sino Bus Parts

Wholesale pricing; bulk orders welcome
Global shipping
Fitment confirmed against your engine serial or CPL before dispatch
Contact us on WhatsApp for a quotation

Part Number	3022474
Fitment	Cummins NTA855 NT855 NH series Engines
Product Type	Water Pump Assy
Material	High-Quality Cast Iron
Quality Standard	Genuine CCEC Quality
MOQ	1 Piece (Bulk Orders Accepted)
Lead Time	3-15 Days Global Shipping
