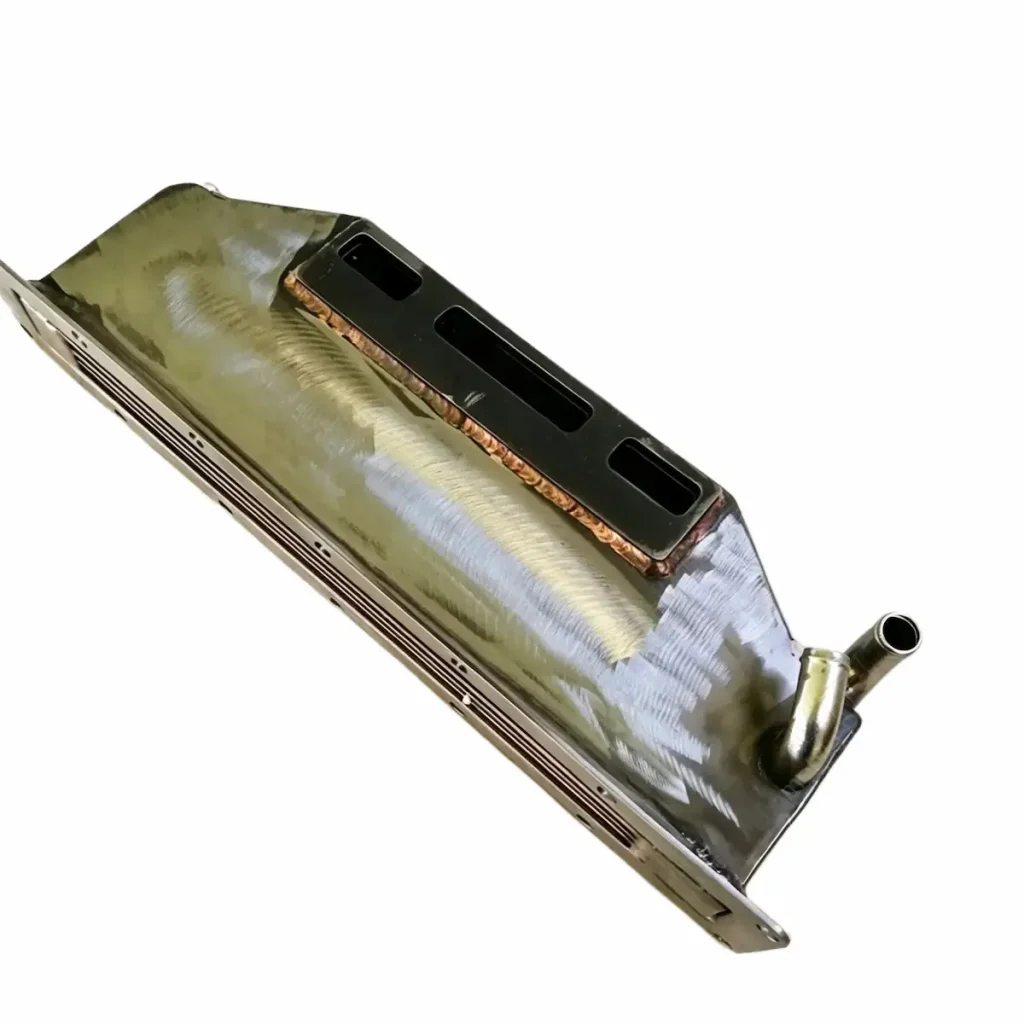

5262612(C5262612） is the aftercooler fitted to Cummins 6BTA, 6BT and ISB engines. Published figures include overall dimension L443.8 × H150.6 × W93 mm, net weight 7.26 KG, working pressure Air side: 0.4MPa; Water side: 1.0MPa. It cross-references 5262612, 3928503, 4941639.
Specifications
| PN |
5262612 |
| Cross Reference PN |
3928503, 4941639 |
| Product Type |
Integrated water-cooled aftercooler |
| Compatible Engines |
Cummins 6B5.9, QSB5.9, ISBE4, QSB6.7 |
| Matching Equipment |
Volvo EC210 excavators, loaders, road rollers, agricultural harvesters |
| Construction Material |
Steel housing, vacuum-brazed aluminum core |
| Overall Dimension |
L443.8 × H150.6 × W93 mm |
| Net Weight |
7.26 KG |
| Working Pressure |
Air side: 0.4MPa; Water side: 1.0MPa |
| Cooling Efficiency |
Temperature reduction ≥100℃, outlet intake air ≤65℃ under full load |
| Rated Service Life |
20,000 heavy-duty working hours |
Key Features
- Cross Reference PN: 3928503, 4941639
- Product Type: Integrated water-cooled aftercooler
- Compatible Engines: Cummins 6B5.9, QSB5.9, ISBE4, QSB6.7
- Matching Equipment: Volvo EC210 excavators, loaders, road rollers, agricultural harvesters
- Construction Material: Steel housing, vacuum-brazed aluminum core
- Overall Dimension: L443.8 × H150.6 × W93 mm
Typical Applications
- Diesel generator sets
- Construction machinery
- Marine propulsion engines
- Industrial power units
Ordering from Sino Bus Parts
- Wholesale pricing; bulk orders welcome
- Global shipping
- Fitment confirmed against your engine serial or CPL before dispatch
- Contact us on WhatsApp for a quotation
