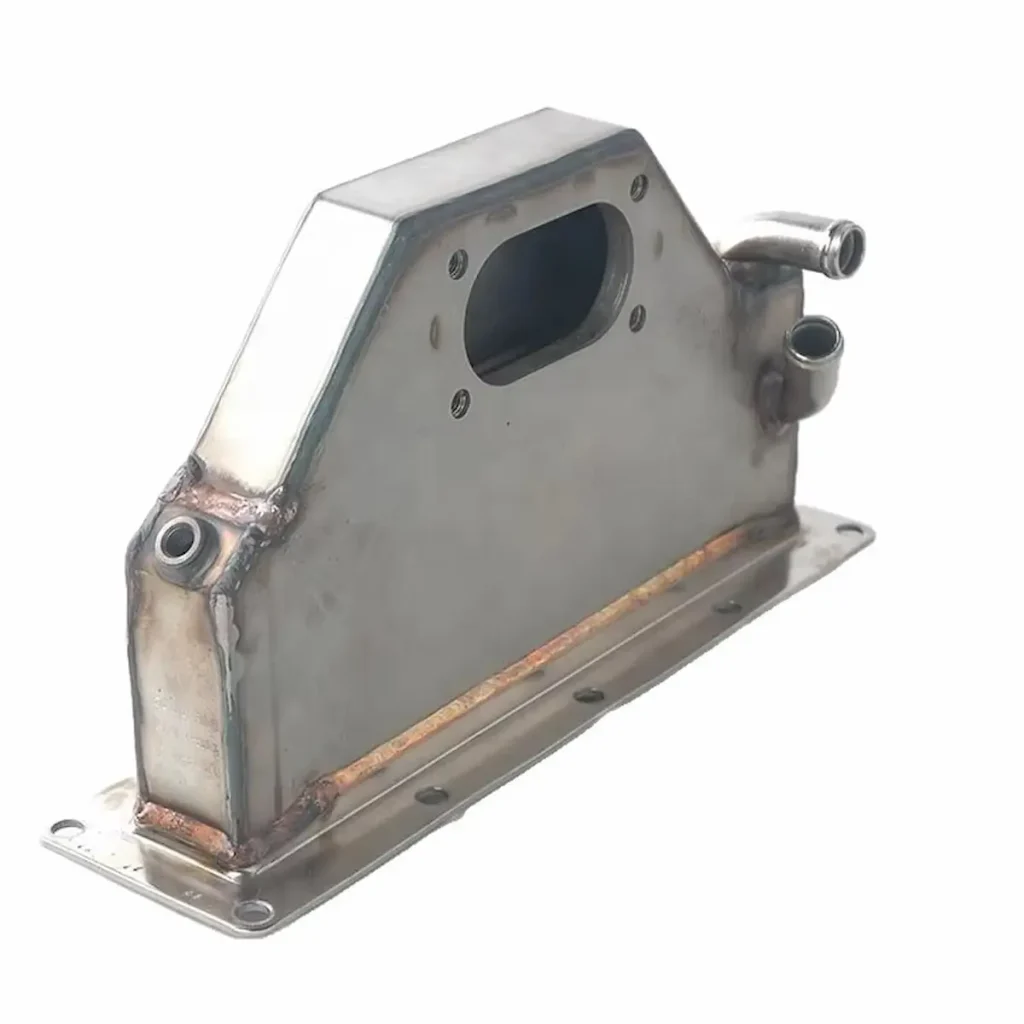

4938507 Aftercooler For Cummins 4BT 4BTA3.9L Engines
4938507 aftercooler intercooler for Cummins 4BT engines.
SKU: 4938507
DescriptionAdditional information
4938507 is the aftercooler intercooler fitted to Cummins 4BT engines. Published figures include max tolerable boost pressure 1.2 bar, net weight 5.2 kg, outer pack dimension 335×230×135 mm. It cross-references 3900139, 3919805.
Specifications
Main PN
4938507, C4938507
Cross Reference PN
3900139, 3919805
Product Name
Water-cooled Aftercooler
Cooling Principle
Water-to-air heat exchange
Mounting Style
Embedded direct installation on cylinder head
Matching Engines
DCEC Cummins 4B, 4BT3.9, 4BTA3.9
Overall Size
325mm(L) × 210mm(H) × 112mm(Thickness)
Mount Flange
8-hole standard flange with OEM hole spacing
Max Tolerable Boost Pressure
1.2 bar
Net Weight
5.2 kg
Outer Pack Dimension
335×230×135 mm
Key Features
Main PN: 4938507, C4938507
Cross Reference PN: 3900139, 3919805
Product Name: Water-cooled Aftercooler
Cooling Principle: Water-to-air heat exchange
Mounting Style: Embedded direct installation on cylinder head
