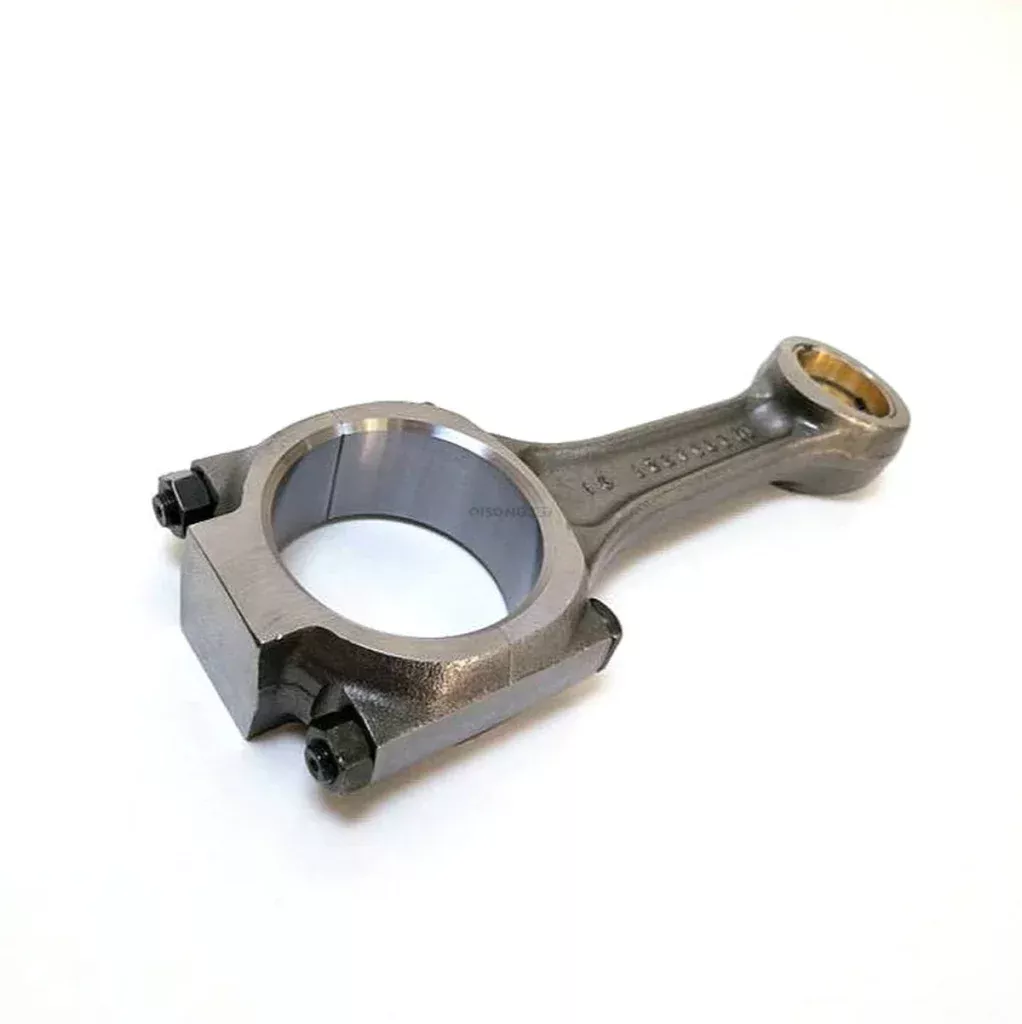

Connecting rod 3632225 covers the full Cummins K38, KTA38, K50, KTA50, QSK38, QSK50, G38 and GTA38 heavy-duty range. It is a closed-die one-piece forging in high-strength alloy steel, 425–450 mm centre to centre and 8.14–8.56 kg. The big end is a split oblique design and the small end carries a built-in copper bushing, matched with dedicated connecting rod bolts.
Specifications
| Part No. |
3632225 |
| English Name |
Engine Connecting Rod |
| Compatible Engines |
Full Cummins K38/KTA38/K50/KTA50/QSK38/QSK50/G38/GTA38 heavy-duty diesel engines |
| Material |
High-strength alloy steel, closed die one-piece forging |
| Net Weight |
8.14–8.56 kg |
| Center-to-Center Length |
425–450 mm |
| Structure |
Split oblique big end, small end with built-in copper bushing; matched with dedicated connecting rod bolts |
| Application Category |
Specific Applications |
| Mining Transport Trucks |
TR100 mining trucks, BelAZ 75131, North Hauler mining trucks |
| Marine Systems |
Ship propulsion systems and marine generator sets |
| Industrial Power Generation |
Industrial generator sets (800KW and above) |
| Petroleum Machinery |
Siji Factory 1000-type fracturing trucks |
| Construction & Emergency Equipment |
Construction machinery and emergency pump units |
Key Features
- Closed-die one-piece forging in high-strength alloy steel
- Centre-to-centre length 425–450 mm
- Net weight 8.14–8.56 kg
- Split oblique big end
- Small end with built-in copper bushing
- Matched with dedicated connecting rod bolts
Typical Applications
- TR100, BelAZ 75131 and North Hauler mining trucks
- Ship propulsion systems and marine generator sets
- Industrial generator sets of 800 kW and above
- 1000-type fracturing trucks and emergency pump units
Ordering from Sino Bus Parts
- Wholesale pricing; bulk orders welcome
- Global shipping
- Fitment confirmed against your engine serial or CPL before dispatch
- Contact us on WhatsApp for a quotation
