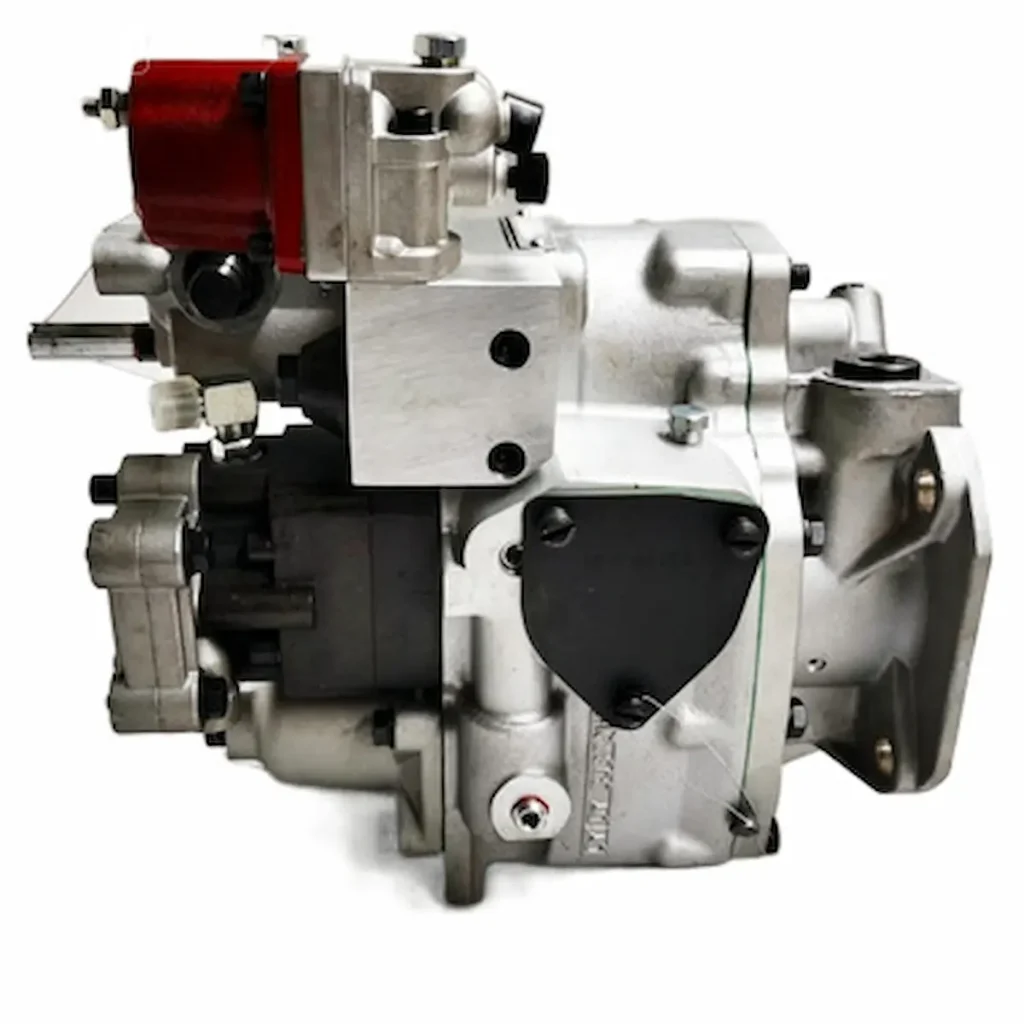

3631724 Cummins CCEC Fuel Pump For KTA38 KTA50 Engines.

PTG BC86 PT fuel injection pump for Cummins KTA38 and KTA50 engines. 2 MPa rated pressure, 10 kg.

SKU: 3631724

Description Additional information

Fuel pump 3631724, full number 3631724-20, is the PTG BC86 PT fuel injection pump for Cummins KTA38-G2, KTA38-G4 and KTA50-G3 applications. It is a pressure-time mechanical pump with a PTG two-stage governor and BC86 control module, housed in high-strength cast aluminium with alloy plungers and FKM seal kits. Rated fuel pressure is 2 MPa; the unit measures 340 × 220 × 330 mm at 10 kg.

Specifications

Full Part No.	3631724-20
Product Name	PTG BC86 PT Fuel Injection Pump
Brand	Genuine CCEC Cummins
Structure	Pressure-time PT mechanical pump, with PTG two-stage governor & BC86 control module
Materials	High-strength cast aluminum housing, alloy plungers, FKM sealing kits
Overall Size	340×220×330 mm
Net Weight	10 kg
Rated Fuel Pressure	2 MPa
Compatible Engines	KTA38-G2/G4 construction machinery & gensets, KTA50-G3

Key Features

PTG BC86 pressure-time mechanical fuel pump
PTG two-stage governor with BC86 control module
High-strength cast aluminium housing, alloy plungers, FKM seal kits
Rated fuel pressure 2 MPa
340 × 220 × 330 mm, 10 kg net

Typical Applications

KTA38-G2 and KTA38-G4 construction machinery and gensets
KTA50-G3 generator sets
Mining and marine installations

Ordering from Sino Bus Parts

Wholesale pricing; bulk orders welcome
Global shipping
Fitment confirmed against your engine serial or CPL before dispatch
Contact us on WhatsApp for a quotation

Part Number	3631724
Fitment	Cummins KTA38 K38 K50 KTA50
Product Type	PT Fuel Pump
Quality Standard	Genuine Cummins CCEC Quality
MOQ	1piece (Bulk Orders Accepted）
Lead Time	3-15 Days Global Shipping
