| Part No. |
3074835 |
| Pump Model |

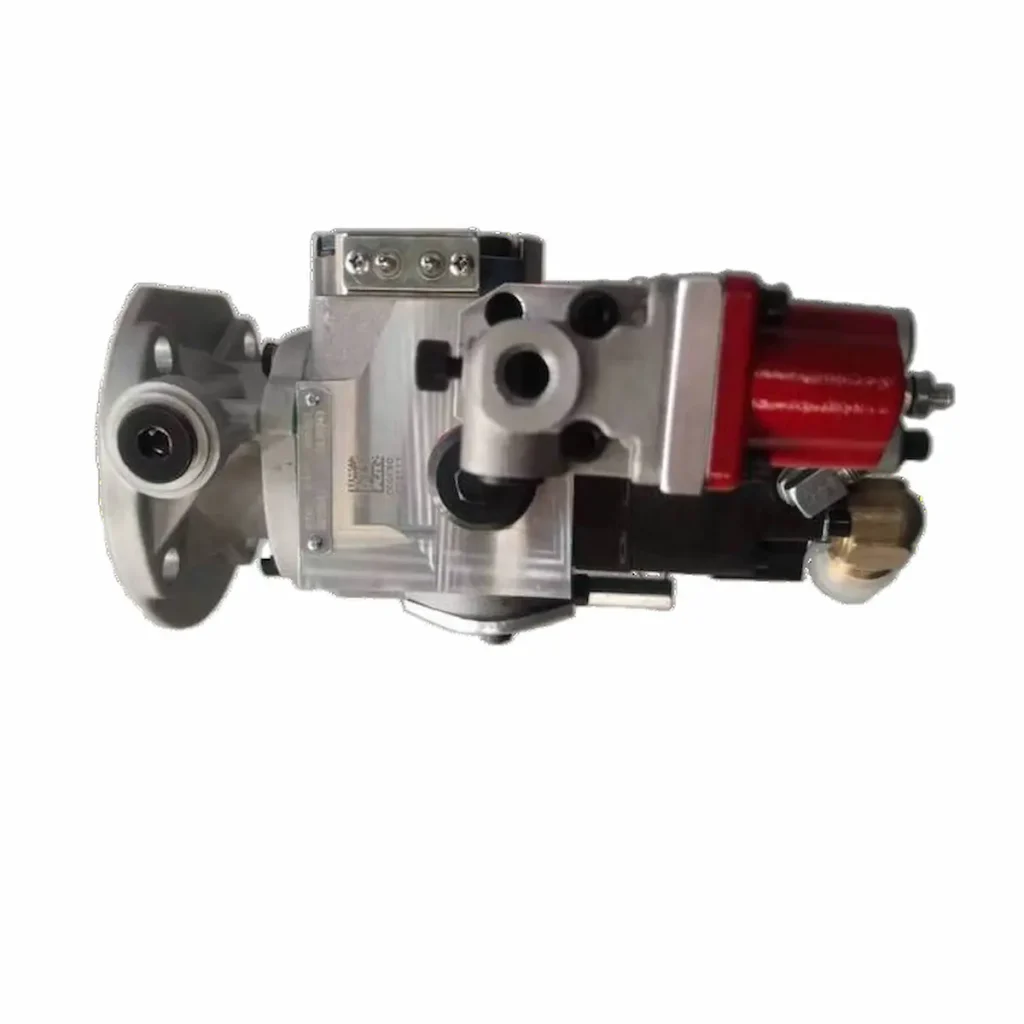

PTG-EFC Electronic Governor PT Fuel Pump |
| Cross Reference PN |
3279627, 3080502 |
| Fit Engines |
KTA38-G2 / KTA38-G2A |
| Matching Genset Power |
450kW@1500rpm (50Hz), 550kW@1800rpm (60Hz) land gensets |
| Housing & Internal Parts |
High-strength cast aluminum housing, precision alloy steel plungers, brass valve assemblies |
| Governor Assembly |
Built-in EFC electronic actuator with 12V fuel cut solenoid, no mechanical speed control lever |
| Sealing Components |
FKM diesel-resistant oil seals, oil-proof NBR O-rings |
| Max Fuel Flow |
428 L/h (113 US gph) |
| Supply Pressure |
≤300 PSI (21 bar); Injector pressure: 10000–20000 PSI |
| Design Positioning |
Frequency-stabilized pump exclusively for stationary power stations; NOT for mining trucks or marine main engines |
| Rated Steady Speed |
1500 / 1800 rpm continuous operation |
| Mounting |
Standard direct-mount flange, drop-in replacement without modification |
| Electrical Spec |
12V shutoff solenoid actuator |
