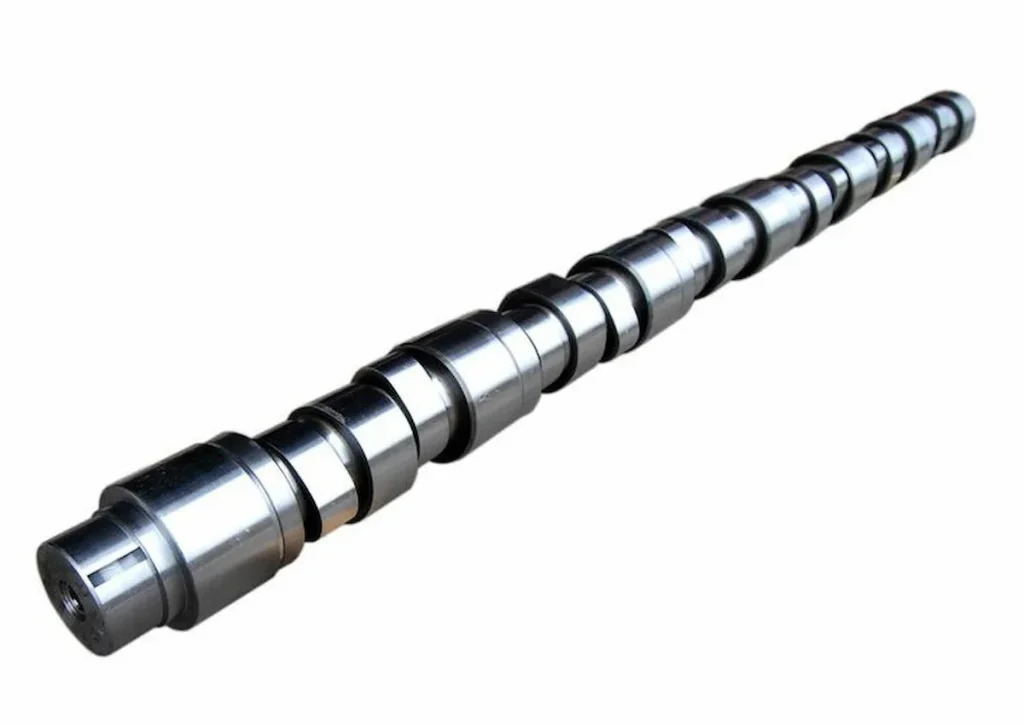

Camshaft 3066899 is the right-bank camshaft for Cummins KTA50, KTA50-C1600 and QSK50 V16 four-stroke diesel engines, running opposite in timing phase to left-bank 3066898. It is a one-piece 4140 forged alloy steel shaft, 2130 mm long, weighing 60–66.6 kg, with a three-key slot drive flange matching the K50 timing gear. Operating range is 600–2100 rpm.
Specifications
| Part No. |
3066899 (Right Bank) |
| Matching Left Bank Camshaft |
3066898 (Opposite timing phase, non-interchangeable) |
| Compatible Engines |
KTA50, KTA50-C1600, QSK50 V16 4-stroke diesel engines |
| Engine Core Specs |
V16 cylinder, 50L displacement, 159mm bore × 159mm stroke, 4 valves per cylinder |
| Overall Length |
2130 mm (2.13 m) |
| Outer Package Size |
2180 × 165 × 160 mm |
| Single Net Weight |
60–66.6 kg |
| End Mount Flange |
3-key slot drive, matches K50 timing gear |
| Base Material |
4140 forged alloy steel (one-piece forging, not cast iron) |
| Operating RPM Range |
600–2100 RPM |
| Typical Working Duty |
Continuous 100% full load for mining, marine & generator applications |
Key Features
- Right bank camshaft, opposite timing phase to 3066898
- One-piece 4140 forged alloy steel, not cast iron
- 2130 mm overall length, 60–66.6 kg
- Three-key slot drive flange matching the K50 timing gear
- Operating range 600–2100 rpm
- Suits continuous 100% full load duty
Typical Applications
- Mining haul trucks
- Marine propulsion engines
- High-output generator sets
Ordering from Sino Bus Parts
- Wholesale pricing; bulk orders welcome
- Global shipping
- Fitment confirmed against your engine serial or CPL before dispatch
- Contact us on WhatsApp for a quotation
