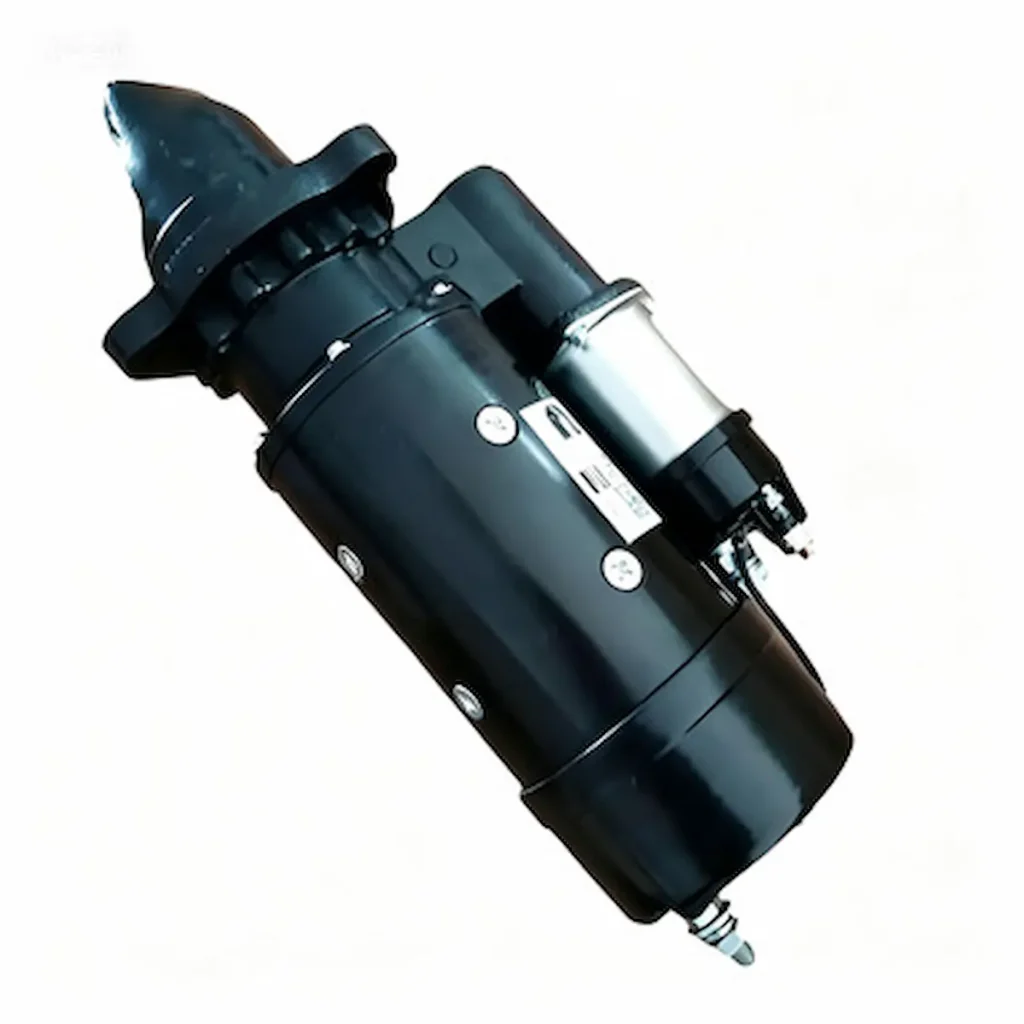

3021036 Cummins Starter Motor for NTA855 Engine

24V 11-tooth starter motor for Cummins NTA855 and NT855 engines. 39MT reduction type, 6.5kW, SAE #3 flange mount.

SKU: 3021036

Description Additional information

Starter motor 3021036 is the 24 V, 11-tooth unit for Cummins NTA855 and NT855 engines, supplied in the mainstream 39MT gear reduction form rated 6.5 kW with 8.5–9.0 kW peak. The pinion turns clockwise on a 56 mm pitch diameter at 6/8 SAE pitch, mounting to an SAE #3 three-bolt flange. The 39MT version weighs 14–17 kg and includes over-crank protection.

Specifications

Parameter	39MT Reduction Type (Mainstream Version) \| 42MT Direct Drive Type (Early Version)
System Voltage	24V DC \| 24V DC
Rated Power	Rated Power:6.5kW Peak Power:8.5-9.0kW \| Rated Power:8.0-8.5kW Peak Power:9.0kw
Pinion Teeth	11 Teeth \| 11 Teeth
Pinion Pitch Diameter	56mm \| 55.9mm
Pinion Pitch	6/8 SAE \| 6/8 SAE
Rotation Direction	Clockwise (CW) \| Clockwise (CW)
Mounting Method	SAE #3 Flange (3-bolt triangular) \| SAE #3 Flange (3-bolt triangular)
Weight	14-17kg (30.8-37.5lbs) \| Approx. 34kg (76lbs)
Dimensions	L 315mm × Φ 143mm \| L 787mm × W 279mm × H 229mm
Protection Features	Built-in overheat protection (over-crank protection) \| No built-in overheat protection

Key Features

24 V DC, 11-tooth pinion, clockwise rotation
39MT reduction type rated 6.5 kW, peak 8.5–9.0 kW
Pinion pitch diameter 56 mm at 6/8 SAE pitch
SAE #3 three-bolt triangular flange mounting
Built-in over-crank overheat protection
39MT unit weighs 14–17 kg, 315 mm long by Ø143 mm

Typical Applications

Generator sets
Construction and earthmoving machinery
Marine auxiliary engines
Industrial power units

Ordering from Sino Bus Parts

Wholesale pricing; bulk orders welcome
Global shipping
Fitment confirmed against your engine serial or CPL before dispatch
Contact us on WhatsApp for a quotation

Part Number	3021036
Fitment	Cummins NTA855 NT855 Engines
Product Type	11T), Starter Motor(24V
Quality Standard	Genuine CCEC Quality
MOQ	1picec (Bulk Orders Accepted)
Lead Time	3-15 Days Global Shipping
