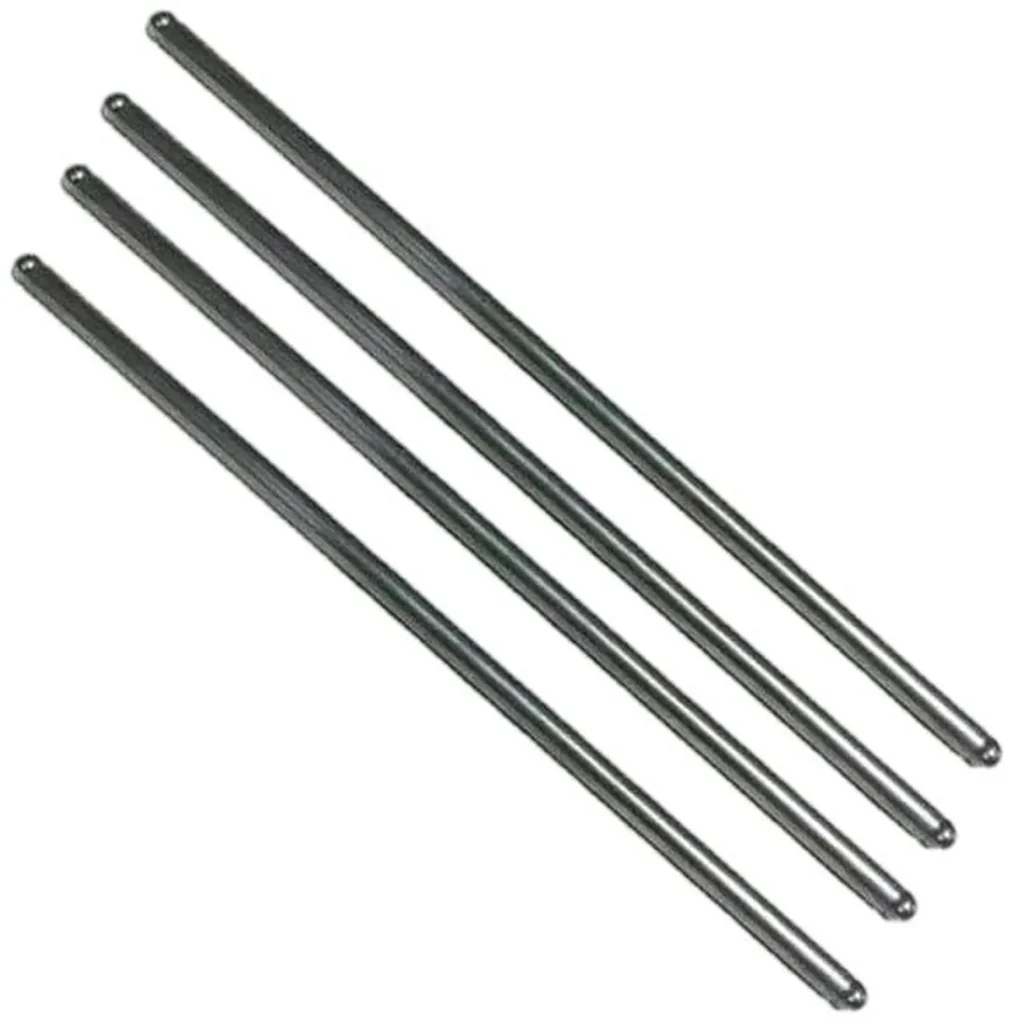

Injector push rod 3017961, cross-referencing 206234, serves the full Cummins KTA19, QSK19, KTA38, QSK38, KTA50 and QSK50 range. It is machined from 4340 chrome-moly alloy steel at 240 mm overall length and 19.05 mm outside diameter, weighing about 0.164 kg per rod.
Specifications
| Official Part No. |
3017961 |
| Item Name |
Injector Push Rod |
| Cross Reference PN |
206234 |
| Single Net Weight |
Approx. 0.164 kg (0.36 lbs) |
| Overall Length |
240 mm |
| Rod Outer Diameter |
19.05 mm |
| Material & Process |
4340 chrome-moly alloy steel |
| Fit Engines |
Full series Cummins KTA19/QSK19, KTA38/QSK38, KTA50/QSK50 |
| Typical Applications |
100-ton mining haul trucks, oil fracturing units, ocean-going main marine engines, high-power diesel generator sets |
Key Features
- 4340 chrome-moly alloy steel
- 240 mm overall length, 19.05 mm outer diameter
- Approximately 0.164 kg per rod
- Cross-references part number 206234
- Covers the full KTA and QSK 19/38/50 range
Typical Applications
- 100-tonne mining haul trucks
- Oil fracturing units
- Ocean-going marine main engines
- High-power diesel generator sets
