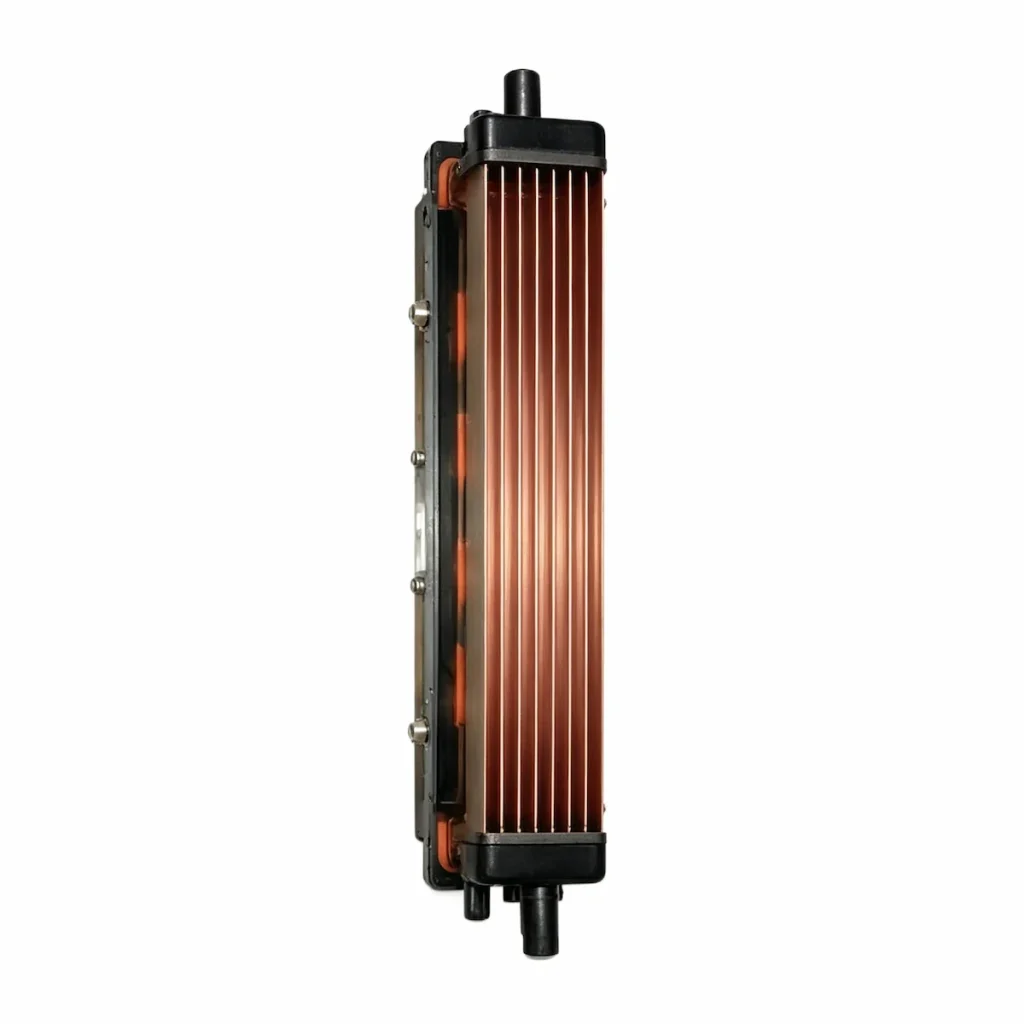

3001299 Cummins Aftercooler For KTA19 QSK19 Diesel Engines

Water-cooled aftercooler core for Cummins K19, KTA19 and QSK19 engines. Copper tube-fin core, 880 × 180 mm, approx. 27 kg.

SKU: 3001299

Description Additional information

Aftercooler core 3001299 is the water-cooled charge air cooler for Cummins K19, KTA19 and QSK19 engines, cross-referencing 4910355, 206807 and 3068724. The core measures roughly 880 mm long by 180 mm wide and is built from pure copper tubes and fins in a tube-fin exchange structure. It mounts by flange bolts with two barbed water connectors and weighs about 27 kg.

Specifications

Part No.	3001299
Cross Reference PN	4910355, 206807, 3068724
Item Name	Water-cooled Aftercooler / Charge Air Cooler Core
Standard	CCEC Cummins dimension & performance specs
Core Dimension	L≈880mm, W≈180mm
Outer Package Size	1014 × 243 × 240 mm
Mounting	Flange bolt fastening, built-in plug-in installation
Water Ports	2 barbed connectors matching original cooling hoses
Single Gross Weight	Approx. 27 kg
Core Material	Pure copper tubes & fins, tube-fin heat exchange structure

Key Features

Pure copper tubes and fins in a tube-fin heat exchange structure
Core dimensions approximately 880 mm long by 180 mm wide
Flange bolt mounting with plug-in installation
Two barbed water ports matching the original cooling hoses
Cross-references 4910355, 206807 and 3068724

Typical Applications

Mining haul trucks and excavators
Prime and standby generator sets
Marine main engines
Oilfield fracturing and workover units

Ordering from Sino Bus Parts

Wholesale pricing; bulk orders welcome
Global shipping
Fitment confirmed against your engine serial or CPL before dispatch
Contact us on WhatsApp for a quotation

Part Number	3001299
Fitment	Cummins KTA19 K19 QSK19 Engines
Product Type	Aftercooler
Quality Standard	Genuine Cummins Quality(CCEC)
MOQ	1piece (Bulk Orders Accepted）
Lead Time	3-15 Days Global Shipping
